IRSHELF SCALE

Weighing shelf vending machine

Automatic 24/7 stock and consumption control

Automatic inventory control with weighing technology

IRSHELF SCALE is an intelligent weighing machine that automates round-the-clock control of PPE, MRO supplies, production parts and consumables. Each weighing position operates independently: the system records withdrawals and replenishments and, based on the change in weight, automatically updates the actual stock level of each product.

Flexible configuration allows the device to be tailored to a specific assortment, with up to 120 independent weighing positions on a maximum of 12 shelves. Different position widths and load ranges make it possible to control both small components and larger or heavier products.

Unique features of the machine

1

Automatic stock and consumption control

Independent weighing positions automatically detect withdrawals and replenishments, updating the actual stock level of each product without manual counting.

2

Flexible configuration with up to 120 weighing positions

Up to 120 independent positions on a maximum of 12 shelves. Various widths and configurations allow the machine layout to be tailored to a specific assortment.

3

Load range from 5 to 100 kg

Different weighing position variants enable control of both small components and larger or heavier products.

4

Pick-to-light and LED signalling

LED indicators point to the correct product and guide the user during withdrawal, replenishment and order picking. The solution supports Poka-Yoke principles, reducing the risk of selecting the wrong product and of operational errors.

5

User identification and withdrawal records

Login with an RFID card or PIN code identifies the user and records their operations. IRSYSTEM provides transparent withdrawal records as well as access and limit control.

6

Automatic replenishment and IRSYSTEM integration

Monitoring of actual consumption makes it possible to generate alerts and orders once a defined minimum level is reached. The solution supports VMI and e-Kanban processes, while IRSYSTEM provides reporting and integration with ERP, SAP, MRP and WMS systems.

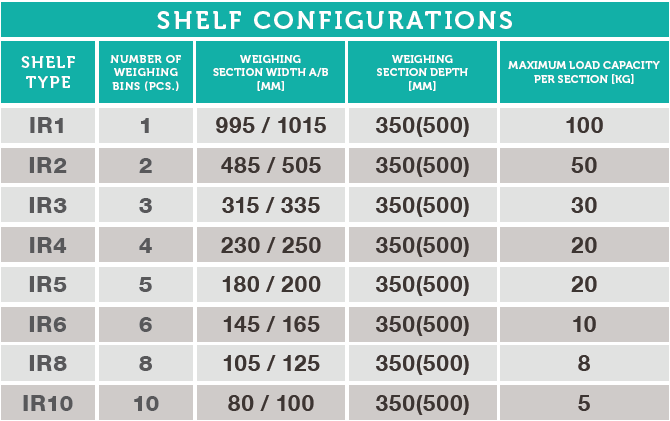

Configurable weighing positions

Available shelf configurations include 1 to 10 independent weighing positions of different widths and load ranges. This allows IRSHELF SCALE to be adapted to both small components and larger or heavier products.

Recommended applications IRSHELF SCALE

Technical data IRSHELF SCALE

Data sheet
HEIGHT
200 cm
WIDTH
130 cm
DEPTH
70 cm
Max. LOAD
100 kg
VOLTAGE
230V
CURRENT DRAW
5/80W
MASS
500 kg
weighing accuracy
1 - 10 g
